UL and CUL certified
800 lumens
60W incandescent equivalent
consumes 12W
The
recessed magnets on the back of the 24V strip can attach it to the metal range hood over the stove. This allows for better dissipation through perfect contact of the light strip to the metal surface.
You may use an
Edison Base adapter to wall outlets to connect the LED driver. Please see the installation instruction for details.

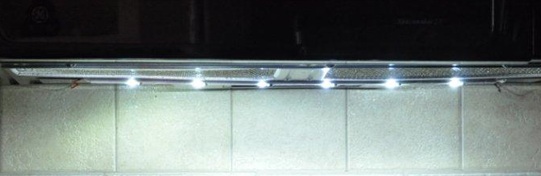

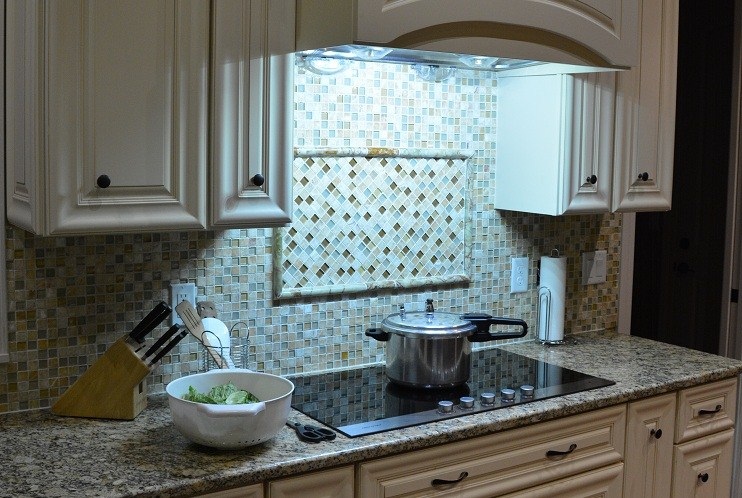

LED Stove Top Light
|
Demo of the SunStrip10
|
|
Installation of the SunStrip10

Click to Enlarge the Slides
|
- 800 lumens, almost two times brighter than a 15-watt fluorescent lamp
- Consumes 12W
- Input: 500mA/24V
- 6000K
- Aluminum LED strip: 20"(L) x 0.4 "(W) x 0.31"(H)
- Coverage 150 degree, evenly covers 3 feet shelf area
- Color Rendering Index (Ra): ~75
- Magnet-mounted under the microwave or ranghood
- Can be linked up to 6 units
- Operating ambient temperature -40°C to +60°C
- 5-year warranty
- Please select LED drivers from the accessories below. Please call 785-8560219 if you need permanent or dimming LED driver.
- Dimming is available when combined with a dimmable LED driver and a dimming switch.
Tab View Script
|
Dimension: 20"(L) x 0.4"(W) x 0.31"(H)
Brightness: 800 lumens
Weight: 2o.z.
Input: 500mA/24V
Please call 785-8328818 for instruction sheet.
Why We’re Unique
All of our LED Light Strips use our proprietary AS-LEDs (Application Specific LEDs), which are designed for perfect integration with our lights. While other manufacturers take extra steps and put their LEDs on a MC-PCB board and use plastic coverings, we place our AS-LEDs directly on aluminum. Due to this and the unsurpassed durability and heat dissipation of our designs, our LED Light Strips catapult to the top in terms of lifetime, efficiency, and brightness.
|
5-year warranty on LED strip.
|
|
