SST’s Product Varieties
SST offers a wide selection of LED products to fit its client’s needs, including a variety of exceptional flashlights, penlights, laser lights, headlamps, workstation lights, and accessories. Uses for SST’s LED products now include Green Wall lighting, RGB lighting, Commercial and residential general lighting, Horticulture lighting, and UV spot curing applications.
SST has been designing application-specific LED products since 2005. SST has patents on a variety of AS-LED modules, LED penlights, and SR25 and SR50 series of LED Can Lights, Pendants and Wall Sconces. S SST’s products are designed and assembled in the USA.
Please click here to shop SST’s Mechanics Lights, Military Lights, and Medical Lights
LED TOOLBOX STORAGE LIGHTING

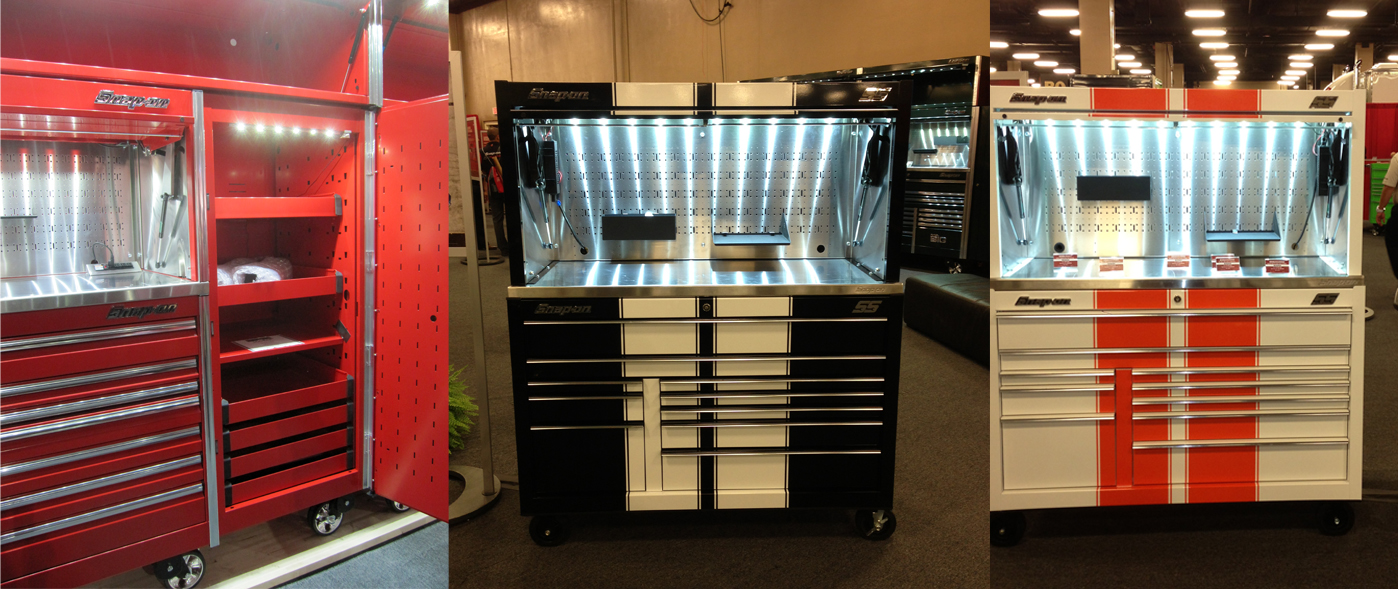

ST40-KEWLED Tool Storage Light is the most dependable tool storage light on the market
SST’s ST40-KEWLED Light Strips are constructed with durable, extruded anodized aluminum and have no plastic components that can become brittle and break. The lights come with built-in magnets and can be magnetically mounted to any metal storage box or riser. Our patented, AS-LED modules have a domed glass lens; this helps to maximize their light output efficiency and eliminate light degradation associated with yellowing of plastic lenses. The ST40-KEWLED Light Strips come with a LIFETIME WARRANTY.
SST’s automatic contact switch is designed to work in any style tool storage riser without hanging power wires. It also comes with a lifetime warranty.
SST’s automatic magnetic switch works in the 27″ deep tool storage riser without hanging power wires. hanging power wires cannot be eliminated in the 22″ deep tool storage riser.

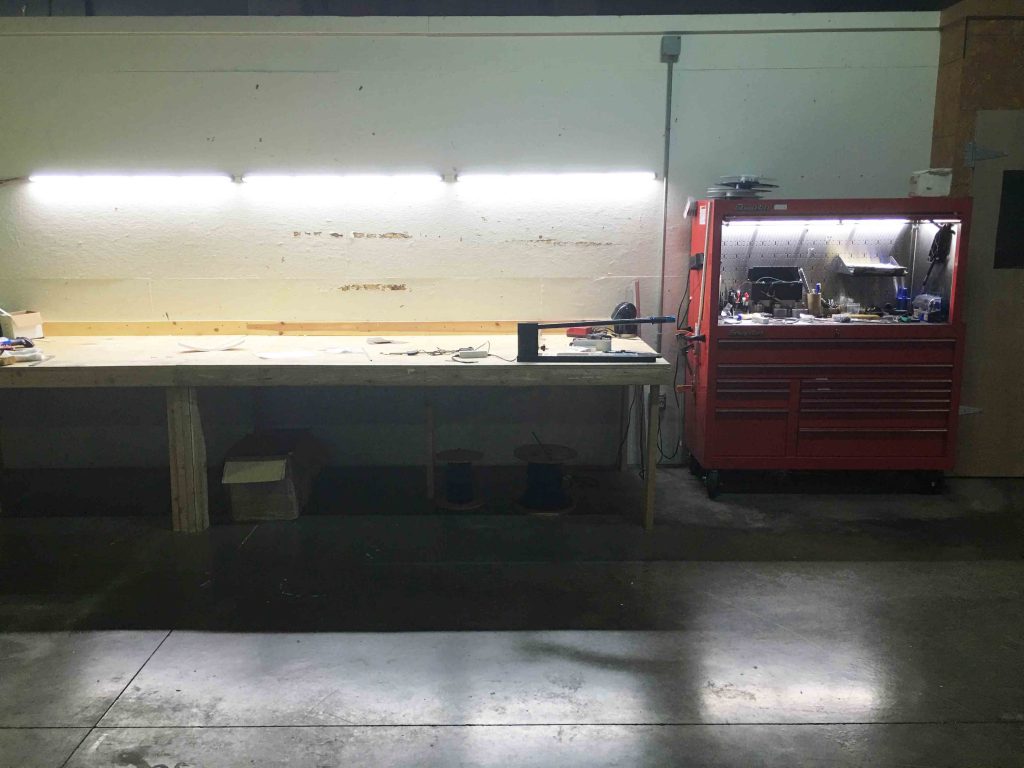

ST30-M Tool Storage Light provides smooth lighting pattern
SST’s ST30-M Light Strips are constructed with durable, extrudes anodized aluminum heat sink and diffuse lens to provide smooth lighting pattern in the storage box. The diffuse lens can be easily replaced. The ST30-M Light Strips come with a 5-year Warranty.
SST’s automatic magnetic switch works in the 27″ deep tool storage riser without hanging power wires. hanging power wires cannot be eliminated in the 22″ deep tool storage riser.
ST10-KEWLED Locker Light is the most dependable locker light on the market
The ST10 Strip light is ideal for lighting a tool storage locker.
The connection wire connects the LED Light Strip, the wall plug power converter, and the push-button switch together. When the locker door closes, it pushes in the push-button, which turns off the LED Light Strip.
LED PENLIGHTS
SST’s Patented LED Penlights are extremely durable; The LED heads are made of solid copper and come with a recessed glass lens. A spring built into the back of the LED head helps prevent damage to the batteries if the light is dropped upon hard surfaces. Rubber sleeves are also available to help prevent impact damage to the light. Our LED Penlights come with a lifetime warranty; the warranty excludes damage caused by battery leakage.
The default white light color temperature for SST’s penlights is 6,000K. White light of 3,700K color temperature is also available for Slim (3-Watt) penlights upon request.
Our LED heads are easily interchangeable and are available in different light colors for different applications, including UV for leak detection and Green for hunting.

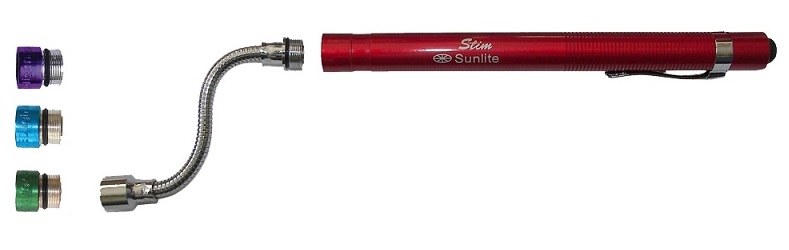

An optional flexible tube (4″ or 12″ in length) can be fitted between the housing and the LED head, effectively converting the penlight into a tool light that can fit into tight spaces. This is very useful for mechanics jobs, etc.
Notes: The Slim power unit houses three 1.5V AAA batteries. It outputs ~800mA to the LED with fresh batteries. Any of the rechargeable LED heads (Turbo or Eagle) can be threaded into the Slim housing.
LED UNDERHOOD LIGHT

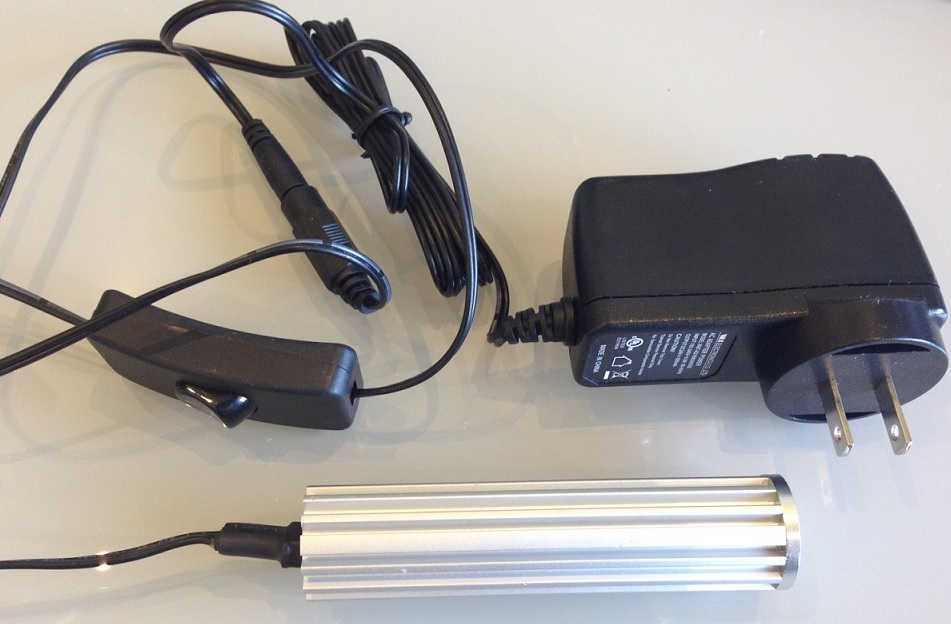

Sufficient lighting is an obvious requirement when installing or working on a car engine. SST’s standard LED underhood light fixtures are made of thin-profile strips of aluminum and come in lengths of either 4 inches, 1 foot, or 2 feet. The aluminum LED strip can be powered by an AC adaptor with an in-line switch, car battery clamps, or a car cigarette lighter adaptor. Configurations with more than one aluminum strip can provide additional lighting cover, especially toward the sides of the hood.
LED FORENSICS LIGHTS
SST manufactures a variety of Forensic LED Flashlights and Penlights. Our interchangeable and replaceable LED heads (with wavelengths in the UV, Visible, and IR spectrum) make it easy to assemble a forensics package with the exact forensic lights you need.
All of SST’s Forensic Lights are extremely sturdy and impact resistant. Our penlights are made with a rugged aluminum housing, and our Turbo and Eagle model light housings are machined with higher-grade anodized aluminum. All of SST’s Forensic Lights are also resistant to dust and moisture. They are made using rubber o-rings that create water-tight seals. The lights are water-resistant and can be used in wet environments (such as outdoors in the rain).
RECHARGEABLE FLASHLIGHTS, HEADLAMPS, and MICROSCOPE/WORKSTATION LIGHTS (LED Heads and Power Units)
SST’s flashlights, headlamps, and workstation lights are designed with easily interchangeable and replaceable parts. For example, it is easy to exchange different colored LED heads on our flashlight products as desired. The tailcaps, switches, and bodies for these products can also be easily exchanged. All of our products have parts that can be easily replaced, and most of our products come with a limited lifetime warranty.
LED Heads used with SST’s Products
The LED heads used for SST’s penlights, flashlights, headlamps, and workstation lights are made with an M11.50×0.7mm fitting and thread into SST’s Slim, Turbo, and Eagle power units.
- Turbo Power Unit:
- Turbo housing (1″ in diameter below the switch unit)
- Three Endcap options for the Turbo housing
The Turbo rechargeable power unit houses one 3.7V Rechargeable Lithium battery. The Turbo CR123 power unit houses two 3V CR123 Lithium batteries.
Both output a constant 1,000mA to the LED. All of the LED heads shown above can be threaded into the Turbo housing.

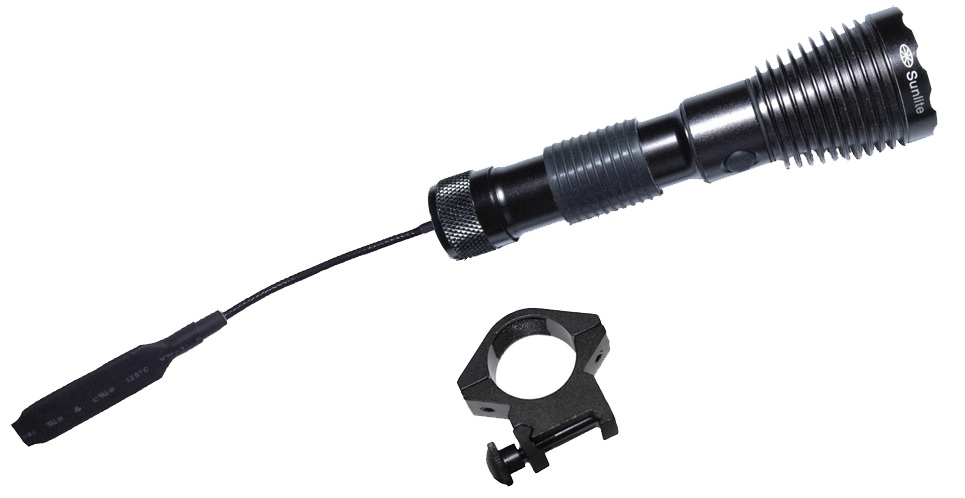

The Turbo housing is designed for tactical use and may be mounted to firearms using a 1-inch standard rail mount.

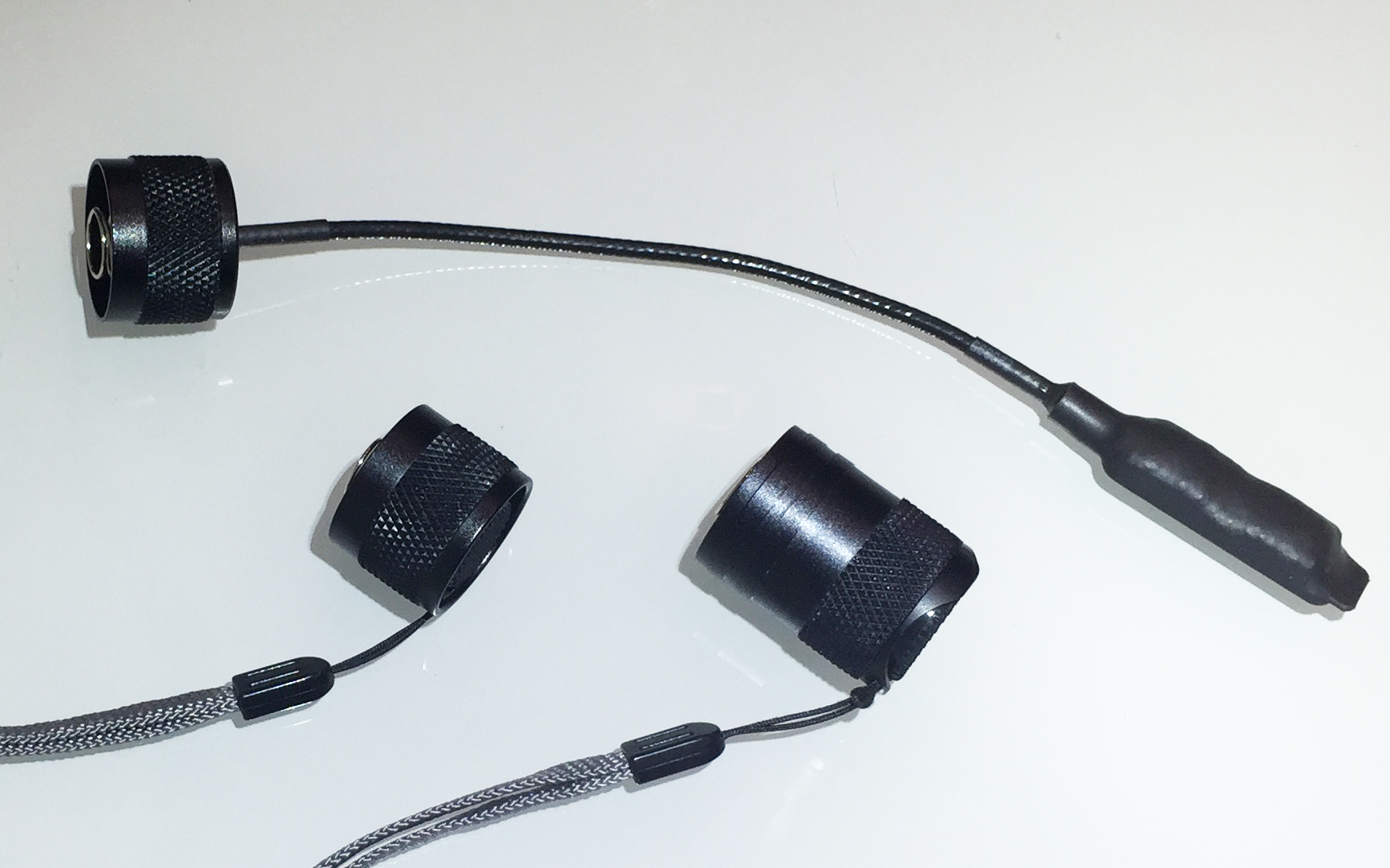

There are three types of endcaps/switches for the Turbo power unit:
“Twist”: The cap may be twisted to turn on the light. The light can also be momentarily turned on by pressing the switch in slightly. The light turns off when the pressure is released.
“Click”: The click switch may be fully pressed to turn the light permanently on and off, or it may be pressed in slightly to momentarily turn the light on until the pressure is released.
“Pressure-sensored”: The pressure sensored switch is available in either 6″ or 12″ length, the sensor at the tail is pressed to momentarily turn the light on. The light turns off when the pressure is released.

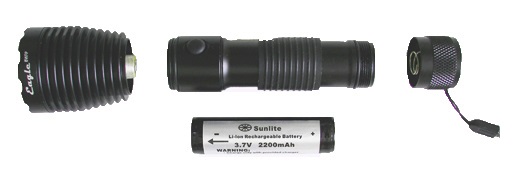

- Eagle Power Unit:
- Eagle housing
- Two Endcap options for the Eagle housing:
The Eagle rechargeable power unit houses one 3.7V Rechargeable Lithium battery and outputs ~1,200mA current to the LED head.
Any of the LED heads shown above can be threaded into the Eagle housing. An optional flexible tube (4″ or 12″ in length) can be fitted between the housing and the LED head to effectively convert the Eagle flashlight into a tool light that can fit into tight spaces.
The Eagle power unit can come with an optional magnetic endcap (a strong magnet fixed inside the endcap) that is useful to fix the light to metal counter tops and other magnetic surfaces.
- Headlamp Power Unit:
- Battery Pack
- Control unit
A coaxial cable is used to wire the rechargeable headlamp. The battery pack plugs into the headlamp control as shown in the figures above. Any LED head can fit into the headlamp control unit, and all parts are easily replaceable.
- Microscope Light power unit (100-240V)
SST’s Microscope Light is ideal for use with Microscopes and Stereoscopes, or it can simply be used as a desk lamp. Any of SST’s LED heads can be used with the unit.
There are three power settings for the main light switch, as well as two dimming switches on the unit panel that dim the two LED heads.
The three main power settings (constant current) are:
—Switch Position I (mainly for use with Slim LEDs), 30mA-200mA
—Switch Position II (mainly for use with Eagle/Turbo LEDs), 30mA-500mA
—Switch Position III (mainly for use with 8WFP or 16WFP LEDs), 30mA-1,200mA

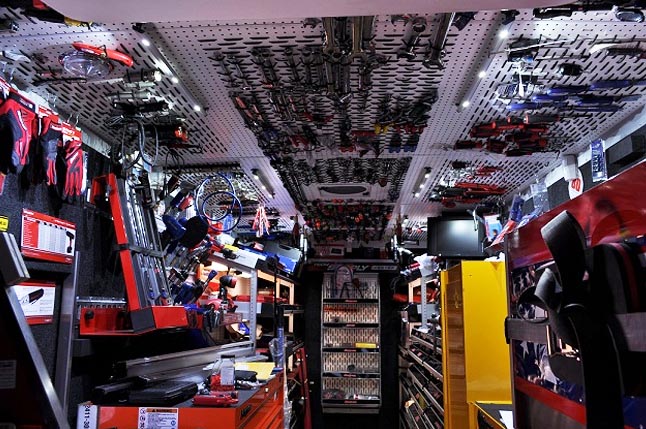

VEHICLE LIGHTS, WORKSTATION LIGHTS AND SHIELD LIGHTS
SST makes high-quality LED Underhood Lights, Vehicle Lights, Workstation Lights and Shield Lights!
To learn more about SST’s general lighting fixtures and products please visit www.sstlighting.com

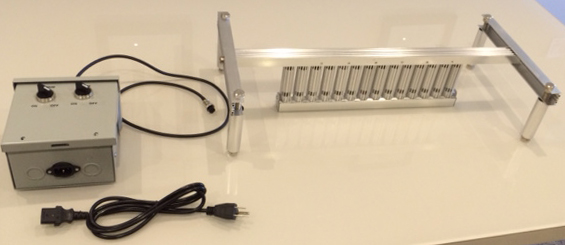

Adhesive Curing Lights – Blue Light or UV
SST makes Blue Light and UV Flashlights and Penlights that are useful for spot curing.
